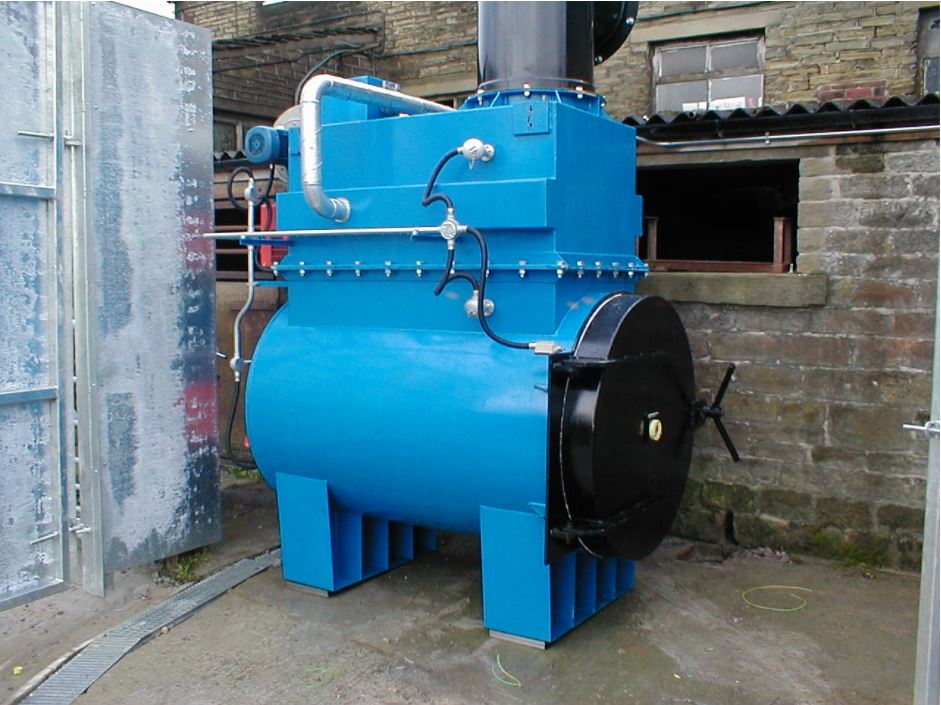

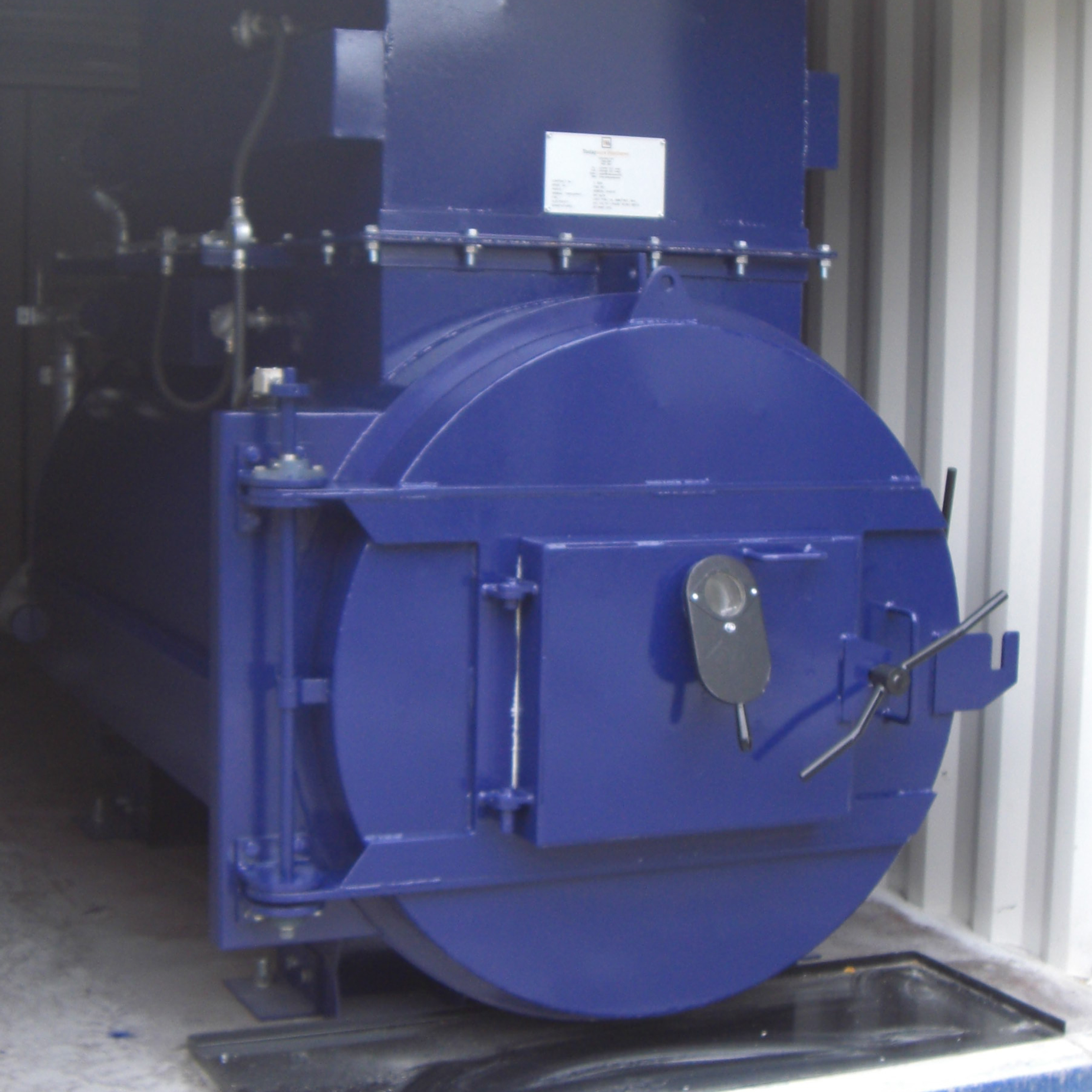

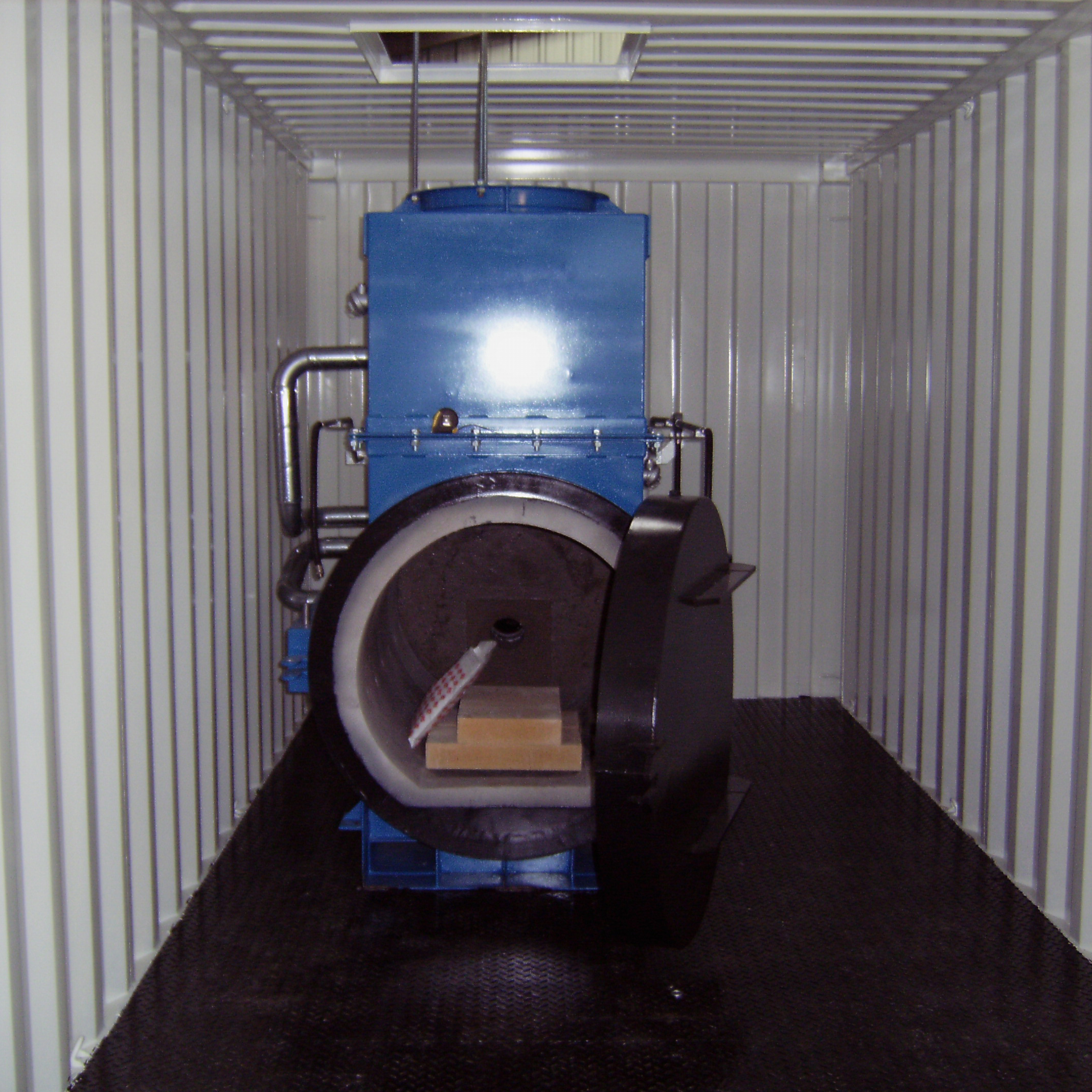

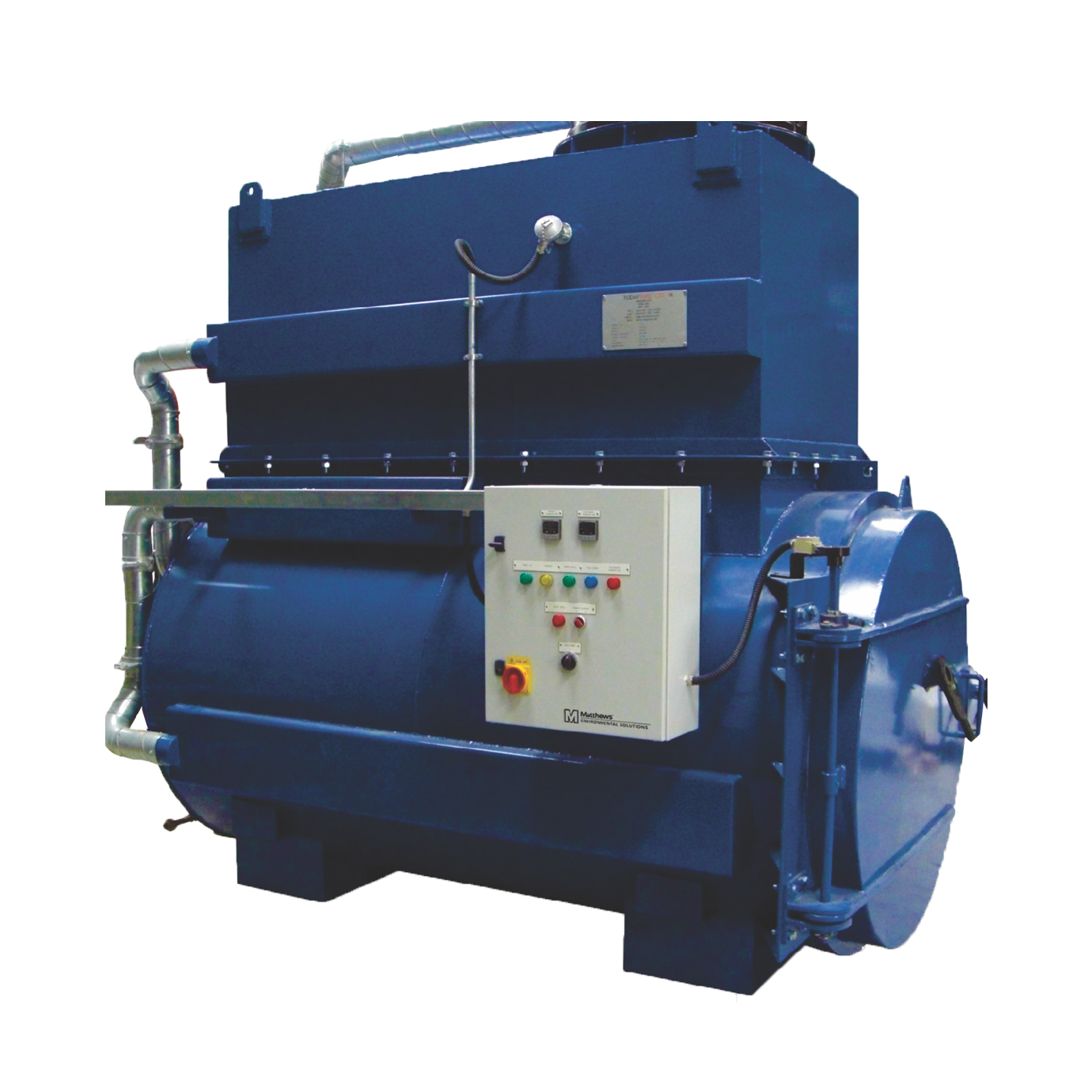

SF-50 INCINERATOR
Efficient & Productive
- Heavy steel shell with 1600°C refractory and high-efficiency calcium silicate insulation
- Full-size interlocked load/ash door
- High-grade refractory lined chimney provides years of maintenance-free operation
- Pressured combustion air penetrates the waste and causes turbulence in the gas stream to ensure efficient destruction of emissions
- Available on a mobile trailer for fast deployment to locations where waste services are not available.
The Matthews Surefire Range of fixed hearth incinerators are world-renowned for offering an efficient and environmentally clean solution to the problems associated with the disposal of a variety of waste types. The horizontal cylindrical design offers the strongest possible refractory construction offering years of maintenance-free operation.
AVAILABLE OPTIONS
• Automatic loading

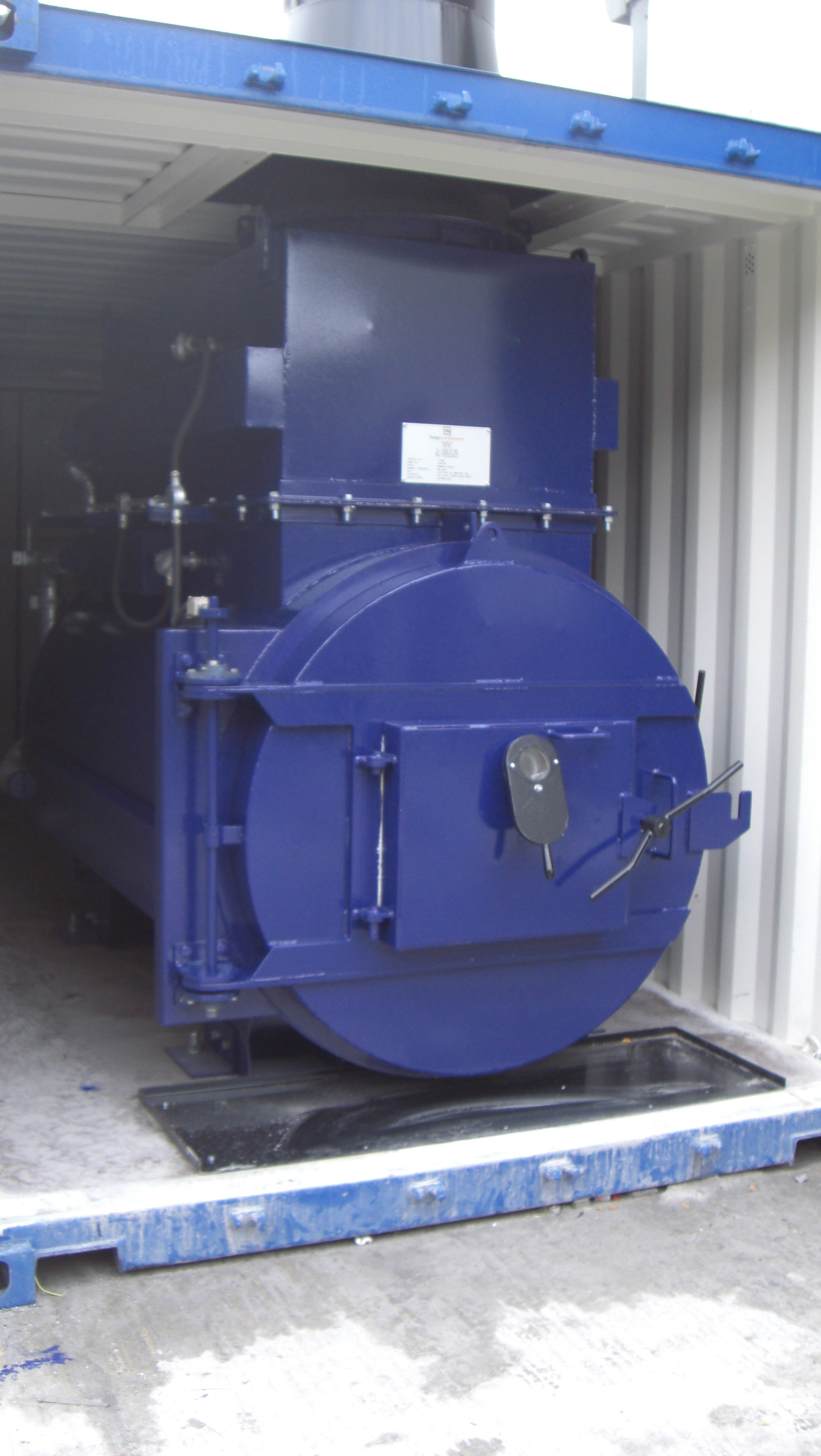

• Mobile - Skid mounted or containerized
• Secondary chamber
• Fuel storage and delivery system
• Energy recovery
• Electrical generator
• Wet scrubber
• Waste oil injection
AVAILABLE OPTIONS
• Automatic loading
• Mobile - Skid mounted or containerized
• Secondary chamber
• Fuel storage and delivery system
• Energy recovery
• Electrical generator
• Wet scrubber
• Waste oil injection
- Chamber Volume: 1.0 m³
- Average Height: 6' 5" (1.96m)
- Overall Width: 4' 7" (1.39m)
- Overall Length: 7' 10" (2.40m)
- Weight: 8,267 lb. (3,750 kg)
- Fuel: Natural or L.P. Gas (Oil Available)
- Electrical: 230 Volts, 1-phase/3-phase
