The Equine and Large Animal Cremation System

  • SMOKE-BUSTER™ 283 Emission Control Chamber
  • 400 lbs. (181 kg) Per Hour Cremation Rate
  • 3000 lbs. (1360 kg) Safe Load Capacity
  • Individual or Communal Load Operation
  • Fully-automatic touch-screen control panel

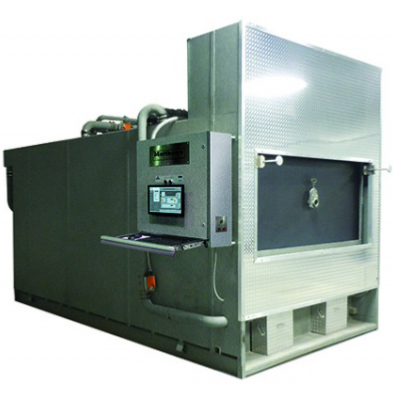

The IEB-56 represents the very latest in cremation technology and s a high-production system designed for facilities that expect large volumes  (8,000-10,000 pets per year) of segregated or communal cremations and the individual cremation of large livestock, including horses.

  • Operating Controls – Our Touch-Screen Panel, PLC-based controls simplify and completely automates the operation of the cremator for your equipment operator.
  • Operator Safety - Underwriter's Laboratories (UL) Listed represents the most widely recognized measure of safety and compliance, ensuring the safety of personnel and facilities.
  • SMOKE-BUSTER™ 283 - This feature effectively consumes and destroys smoke and odor from the cremation process.
  • Quiet Operation - Exclusive "Whisper Shield" allows operation without disturbing other services.
  • Retrieval System - Retrieval of cremated remains is safe and quick with the convenient external collection hopper.
  • Cremation Chamber Floor - Unique "Hot Hearth" design eliminates fluid runoff and minimizes fuel consumption.
  • Stainless Steel Stack - Non-Corrosive, with 3” refractory lining for strength, durability, and safety.
  • Insulating Thickness - 12" of multi-component materials for longest lasting refractory and highest thermal efficiency.
  • Loading Door - Self-locking, self-sealing door opens and closes at the push of a button.
  • Speed:  400lbs/2181kg per hour

  • Safe load:  3000lbs/18141360kg

  • Secondary volume:  74ft3/ 2.1 m3

  • Fuel type:  Natural or LP Gas

  • Electrical:  220 volts, 1-Phase or 3-Phase

  • Length:  16’ 8" (5.08m)

  • Width:  8’ 11.5" (2.73m)

  • Height:  9’  11.5" (3.03m)

  • Weight:  54,000 lbs/24494kg
