Woodland Cemetery in Sweden

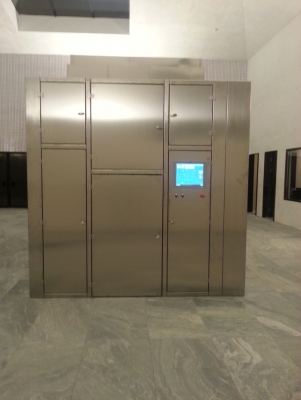

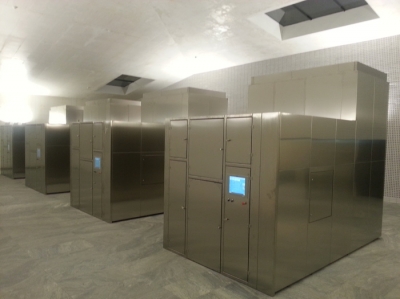

Matthews built and installed a four-incinerator facility at Woodland Cemetery in Stockholm with a flue gas cleaning system. Featuring 1.1m front doors, rear-side ash discharge, an integrated ash cooling system, and an automatic coffin loader, these cremators are capable of 24-hour operation, and are used for 6-7 cremations daily. The system features a unique flue gas chimney booster, as well as a water-cooled circuit for heating and cooling the building. The facility was completed in 2012 and is compliant with all relevant European environmental regulations.

INSTALLATION

• Sweden, Stockholm – Woodland Cemetery Listed as Unesco World Heritage

CREMATIONS PER DAY

• 6-7 Cremations, per day each CRM unit

EMISSIONS

• In compliance with the European Standards and Regulations in the country of installation.

SCOPE OF PROJECT

• CRM 6R
• High-performance cremator = H24 working process
• Front door opening = 1100mm
• Ash discharge = rear-side
• Integrated ash cooling system

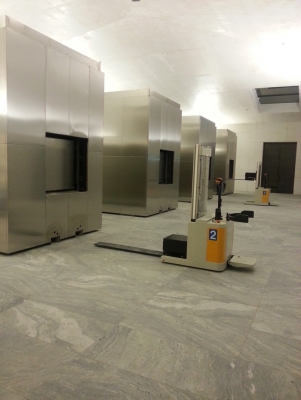

• Automatic coffin insertion system with lifting truck

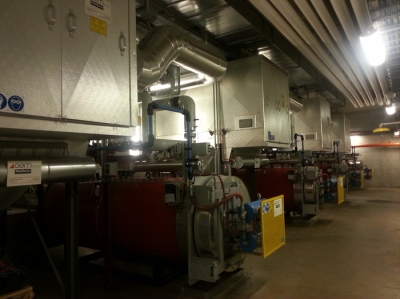

• Flue gas cleaning with reagent injection system
• Water circuit for heating and cooling building
• Unique booster solution for flue gas chimney 250 meters far away from cremators building
